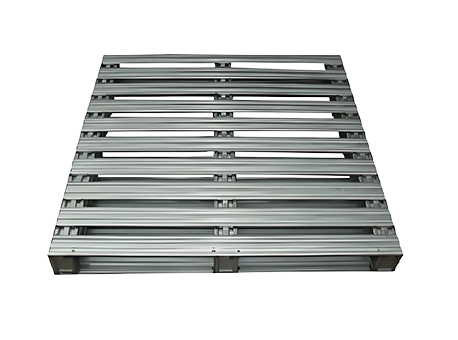

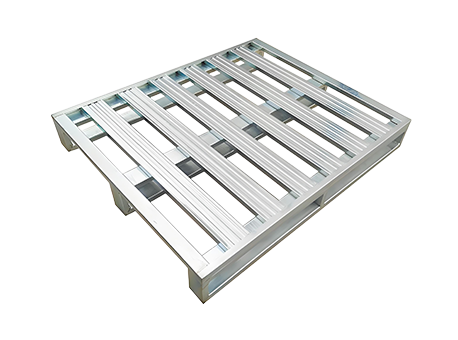

Iron pallet
View Catalog
Online Message
|
Parameter Category |
Regular Version (Example) |
Custom Version Description |
|
Dimensions (L×W×H) |
1200×1000×150mm (Mainstream Standard) |
Customizable 800×600mm~2000×1500mm |
|
Material |
Cold-Rolled Steel Plate (Q235) |
Hot-Rolled Steel Plate, Stainless Steel Plate (Stronger Corrosion Resistance) Optional |
|
Panel Thickness |
2.5mm |
2-4mm Optional (The Higher the Load-Bearing, the Thicker the Thickness) |
|
Bottom Structure |
3 Crossbeams + 6 Supporting Feet |
Crossbeams/Supporting Feet Can Be Densified to Enhance Load-Bearing |
|
Static Load-Bearing |
5T |
3-8T Adjustable (Need to Match Material Thickness) |
|
Dynamic Load-Bearing |
2T |
1-3T Adjustable |
|
Stacking Load-Bearing (Fully Loaded) |
3 Layers (Approx. 15T) |
5-8 Layers (Custom Reinforced Structure Required) |
|
Rust Prevention Treatment |
Electrostatic Spraying (Rust Prevention Grade ≥8) |
Hot-Dip Galvanizing Optional (Rust Prevention Grade ≥10, Suitable for High-Temperature Environments) |
|
Fork Hole Dimensions (L×W) |
1100×120mm (Compatible with Standard Forklifts) |
Fork Hole Height/Width Adjustable According to Forklift Model |
|
Weight |
25kg (1200×1000mm Specification) |
15-50kg (Varies with Size and Thickness) |
|
Applicable Temperature Range |
-30℃~80℃ |
High-Temperature Version Can Withstand 120℃ (Custom High-Temperature Coating Required) |
|
Additional Configurations |
Optional Anti-Slip Pad (Rubber, Prevent Cargo Sliding), Guardrail (Prevent Cargo Falling During Stacking), Nameplate (Print Load-Bearing/Specifications) |
Configurations Can Be Added or Reduced as Needed |
