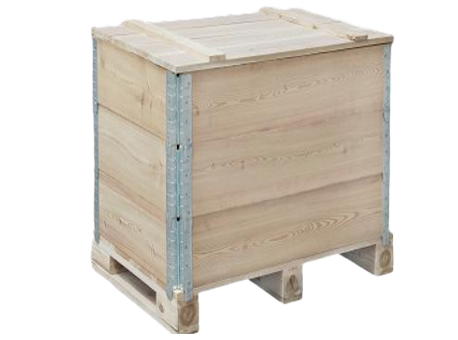

Frame box
View Catalog
Online Message
Frame box
View Catalog
Online Message
|
Parameter Category |
Specific Specifications |
|
Product Model |
KJ-10 (Light), KJ-20 (Medium), KJ-30 (Heavy), KJ-C (Custom) |
|
Frame Base Material |
1. Solid Wood: Pine (Moisture Content 8%-12%), Poplar (Moisture Content 8%-15%); 2. Plywood: 15mm/18mm Multi-layer Birch Plywood (E0 Environmental); 3. Metal Frame: 1.2mm-2.0mm Galvanized Square Steel (Section 20×20mm-50×50mm) |
|
Panel/Inner Liner Material |
1. Panel: 5mm High-Density Corrugated Board (Waterproof Grade IPX3), 8mm Waterproof Fiberboard; 2. Inner Liner: EVA Buffer Cotton (Density 38±2kg/m³), EPE (Thickness 5-50mm), Honeycomb Board (Thickness 10-20mm) |
|
Regular Outer Dimensions (L×W×H) |
KJ-10: 600×400×300mm; KJ-20: 1000×600×500mm; KJ-30: 1500×800×800mm; Custom: Max 3000×1500×1200mm (Oversize Requires Structural Optimization) |
|
Regular Inner Dimensions (L×W×H) |
KJ-10: 580×380×280mm; KJ-20: 980×580×480mm; KJ-30: 1480×780×780mm; Custom: Precisely Matched to Item Size (Error ±2mm) |
|
Rated Load Capacity |
KJ-10: Static ≤50kg, Dynamic ≤30kg; KJ-20: Static ≤150kg, Dynamic ≤100kg; KJ-30: Static ≤300kg, Dynamic ≤200kg; Metal Frame Custom: Static Max ≤800kg (Requires Separate Reinforcement Design) |
|
Frame Connection Method |
1. Solid Wood/Plywood Frame: Mortise and Tenon Joint + Galvanized Bolt Fixing (M6-M10); 2. Metal Frame: Welding + Bolt Reinforcement, Node with Triangular Gusset Plate |
|
Reinforcement Accessories |
Optional Galvanized Corner Code (40×40×3mm), Steel Strip Hoop (Width 15mm, Thickness 0.8mm), Anti-Slip Pad (Rubber, Thickness 3mm) |
|
Impact Resistance |
Complies with GB/T 10485-2007, No Frame Fracture or Fastener Loosening After 1.2m Drop Test (Light); Structural Integrity After 2.0m Drop Test (Heavy) |
|
Applicable Temperature Range |
-20℃~50℃ (Solid Wood Avoids Long-Term High Temperature and Humidity, Metal Can Withstand -30℃~60℃) |
|
Humidity Tolerance |
Relative Humidity ≤85% (Plywood/Metal); Relative Humidity ≤75% (Solid Wood, Moisture-Proof Treatment Recommended) |
|
Environmental Standards |
Solid Wood Complies with IPPC/ISPM 15 Fumigation Standard (Fumigation Certificate Available); Plywood Complies with E0 Formaldehyde Emission ≤0.05mg/m³ |
|
Customizable Range |
1. Size: Custom Length/Width/Height (Match Transport Tool Size); 2. Material: Adjust Frame/Panel Material (e.g., Corrosion-Resistant Stainless Steel Frame); 3. Function: Add Handle, Lifting Ring, PVC Viewing Window; 4. Marking: Silk Screen/Hot Stamping Logo, Warning Mark (e.g., "Moisture-Proof" "Up"), Traceability QR Code |
|
Customization Lead Time |
Regular Custom: 7-10 Working Days; Heavy/Special Material Custom: 12-15 Working Days |
International Trade and Cross-border Logistics
Electronics and Electrical Appliances
Pharmaceuticals
Mechanical Equipment
Chemicals
• Environmental Requirements: Wood complies with international environmental standards to reduce chemical treatments, ensuring compliance with plant quarantine regulations in various countries.
• Inspection Measures: Every batch of raw wood undergoes moisture content, scar, pest infestation, and strength testing before it is stored.
• Grooving and Planing: Processed by professional grooving and planing machines to ensure the surface of pallets and wooden boxes is smooth for assembly.
• Automated Equipment: CNC processing improves production efficiency and consistency, suitable for large batch orders.
• Heat Treatment: Use the international ISPM 15 standard heat treatment process to eliminate pests and fungi, ensuring smooth customs clearance for export wooden packaging.
• Monitoring Measures: Continuous temperature and humidity monitoring, strict record of processing parameters, ensuring product consistency.
• Steel Straps, Clamps, and Fasteners: Processed by stamping, bending, and welding to ensure the strength and durability of metal components.
• Quality Control: Each component undergoes size, load-bearing, and surface treatment testing to ensure safety and reliability after assembly.
• Fixing Method: Use high-strength nails, screws, and metal fasteners to ensure that pallets or wooden boxes do not loosen during transportation.
• Quality Check: After assembly, each product undergoes initial load-bearing tests and structural stability checks.
• Moisture-proof and Anti-corrosion: Coating with moisture-proof agents or anti-corrosion agents to extend product lifespan.
• Optional Treatments: Spray painting or logo marking as per customer request to enhance aesthetics and brand recognition.
• Key Tests: Includes load-bearing tests, compression resistance tests, dimension checks, and heat treatment label verification.
• Export Guarantee: All export products meet IPPC/ISPM 15 standards and are accompanied by complete inspection records.
• Marking: Apply IPPC heat treatment labels (HT mark) on export products to meet international transportation and quarantine requirements.
• Packaging Information: Customer logos, product models, and destination port information can be marked for easy logistics identification.
• Logistics Assurance: With favorable transportation conditions in Qingxian (National Highway 104, Beijing-Shanghai Expressway), rapid response to domestic and international orders.
• Shipment Tracking: Provide full logistics tracking services to ensure timely and safe delivery to customers.
