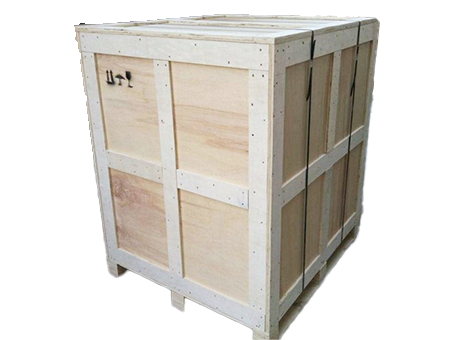

Mechanical Packaging Box
View Catalog
Online Message
Mechanical Packaging Box
View Catalog
Online Message
|
Dimensions (L×W×H) |
1500×1000×800mm (Mainstream Model) |
Customizable 800×600×500mm~3000×1800×1500mm (Suitable for Small and Medium Machinery) |
|
Material |
Solid Wood (Pine/Birch), Multi-Layer Plywood |
Solid Wood for Ultra-Heavy Machinery (≥1.5T), Plywood Exempt from Fumigation (Exportable) |
|
Structure Type |
Steel Strip Reinforcement + Bolt Splicing + Reinforced Bottom Plate |
Bottom Plate with 50×80mm Solid Wood Beams to Prevent Bottom Deformation |
|
Wall Thickness |
Solid Wood 25-30mm, Plywood 18-22mm |
Ultra-Heavy Version Can Be Thickened to 35mm (with Triangular Bracing Reinforcement) |
|
Static Load-Bearing |
Solid Wood 2000kg, Plywood 1500kg |
Can Be Increased to 3000kg with Reinforcing Ribs |
|
Dynamic Load-Bearing (Handling) |
Solid Wood 1200kg, Plywood 800kg |
Compatible with Forklifts/Cranes (Lifting Points Reserved) |
|
Protective Performance |
Impact-Resistant, Crush-Resistant, Moisture and Rust-Proof |
Optional Inner Moisture-Proof Film/Rust-Proof Paper (for Precision Machinery) |
|
Temperature Range |
-20℃~55℃ |
Avoid Long-Term Rain Exposure (Waterproof Coating Optional) |
|
Handling Compatibility |
Forklift Fork Holes Reserved (Width 120mm), Top Lifting Points (1.5 Times the Box Weight Capacity) |
Large Machinery Version Can Be Equipped with Casters (for Short-Distance Movement) |
|
Internal Accessories |
Customizable Solid Wood Partitions, EVA Buffer Pads |
M8-M12 Bolts for Machinery Fixing (Configured as Needed) |
|
Export Compliance |
Plywood Complies with IPPC/ISPM 15 |
Solid Wood Version Can Provide Fumigation Certificate |
